PME-E Open-Circuit Evaporative Cooling Tower

How it Works

The PME-E open evaporative tower uses the efficient principle of evaporative cooling: the forced evaporation of a small quantity of water causes a drop in the temperature of the main water mass. The corrosion-proof fibreglass sandwich panelling ensures that the equipment is lightweight.

All models are fully pre-assembled in our factory.

PME-XL is an extension of the PME-E range: a single PME-XL cell can dispose of up to about 5 MW, with important results in terms of installed power and noise. This solution is particularly suitable for projects where multiples of PME-E were previously offered.

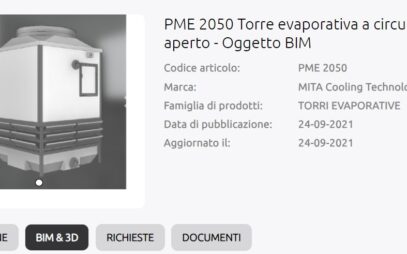

BIM File

Download PME-E on Skeinforce

Technical Features

• Axial motor-fan with direct coupling, low installed power, low noise levels.
• Support structure in hot dip galvanized steel after fabrication.
• Distribution system in PVC or PP equipped with wide non-clogging PP spray nozzles.
• Fill pack with different kinds of air/water channels, suitable for the use with different water types.
• Certified PP drift eliminators (entrainment 0.01%).
• Tank with sloping base entirely made of fibreglass.
• Capacity: from 860 kW to 5 MW (indicative capacity referring to a machine, thermal gradient 5°C).
